PVFG Series 1500Vdc 10x85mm
Class of Operation: gPV
Rating:
Amps: 15-25A
Volts: 1500Vdc
Interrupting Rating: 30kA@1500Vdc
Standards/Approvals for Reference:
2 Approvals UL 248-19 Listed（2579）；
2 Environmental RoHS Compliant REACH
2 Body: Fiberglass
2 Terminations: Tin Plated Copper Caps
Description: CHNBEL series of 10x85 mm, 1500Vdc PV fuses are for protecting and isolating photovoltaic strings, are applied in combiner boxes, inverters.

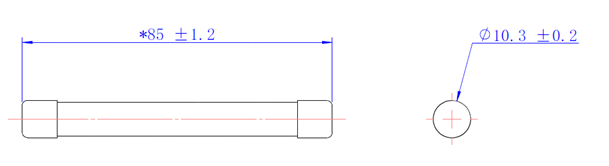

Dimensions(mm)
Catalogue Numbers
Series | Amperage | ORDERING | VOLTAGE | INTERRUPTING | WATTS LOSS | MELTING | TOTAL CLEARING |
DC | DC | ||||||
PV1500 | 2A | PV1500-2A150L | 1500 V | 30kA | 0.80 | 4 | 12 |
PV1500 | 2.25A | PV1500-2.25A150L | 1.20 | 5 | 15 | ||
PV1500 | 15A | PV1500-15A150L | 5.80 | 286 | 720 | ||
PV1500 | 20A | PV1500-20A150L | 6.50 | 508 | 1280 | ||
PV1500 | 25A | PV1500-25A150L | 7.20 | 868 | 2188 | ||
PV1500 | 30A | PV1500-30A150L | 7.60 | 1250 | 3150 | ||
PV1500 | 32A | PV1500-32A150L | 7.80 | 1625 | 4096 | ||
*PV1500 | *35A | *PV1500-35A150L | 8.50 | 2188 | 5515 |
